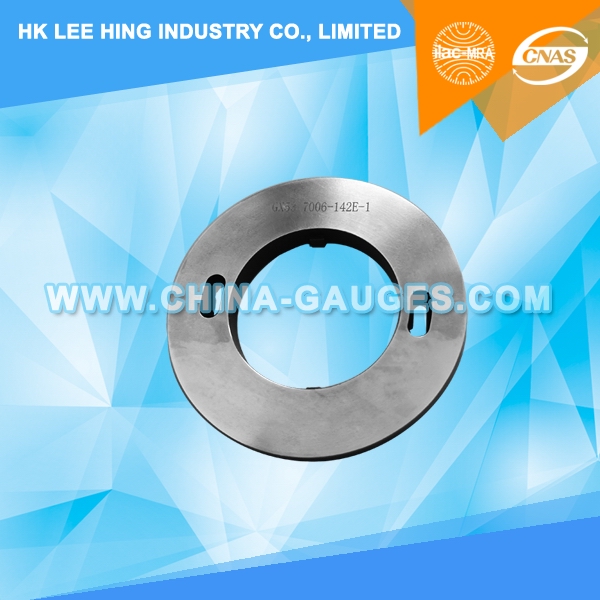

7006-142E-1 GX53 Go and No Go Gauge for Checking Keyways in Caps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-142E-1
Made in China
Product description: 7006-142E-1 GX53 Go and No Go Gauge for Checking Keyways in Caps According to standard IEC 60061-3
INQUIRY

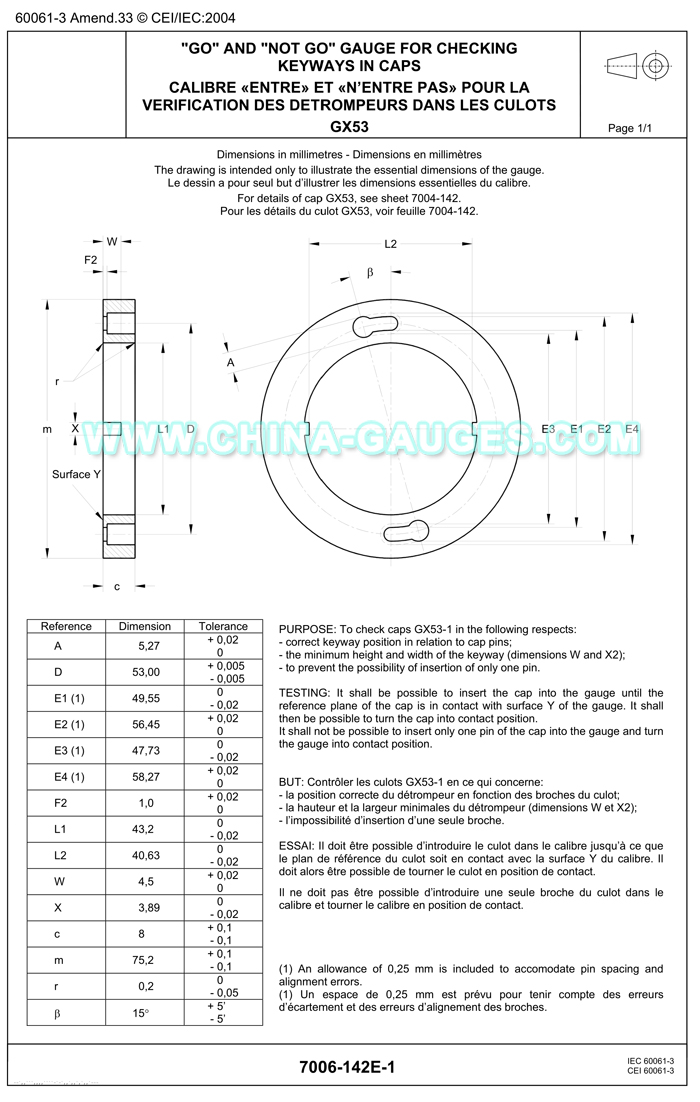

7006-142E-1 GX53 Go and No Go Gauge for Checking Keyways in Caps

PURPOSE:
To check caps GX53-1 in the following respects:
- correct keyway position in relation to cap pins;
- the minimum height and width of the keyway (dimensions W and X2);
- to prevent the possibility of insertion of only one pin.

TESTING:
It shall be possible to insert the cap into the gauge until the reference plane of the cap is in contact with surface Y of the gauge. It shall then be possible to turn the cap into contact position.

It shall not be possible to insert only one pin of the cap into the gauge and turn the gauge into contact position.
