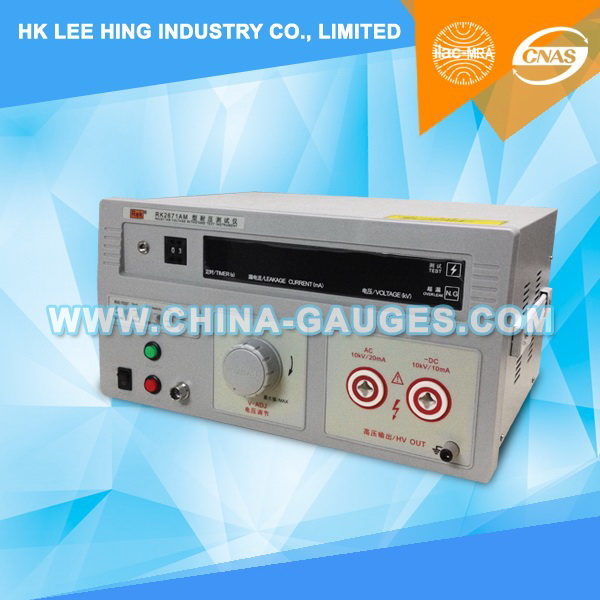

AC/DC:0-5/10KV, AC:20mA, DC:10mA Voltage Withstand Test Instrument

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: RK2671AM
Made in China
Product description: This high voltage test (also called dielectric strength test, hipot test, hi-pot test, breakdown test or flash test) is made to stress the device under test to an AC or DC high voltage and check that
INQUIRY

AC/DC:0-5/10KV, AC:20mA, DC:10mA Voltage Withstand Test Instrument

Operation condition:
Environment Temperature: 0~40°C
Relative Humidity: ≤75%
Atmospheric Pressure: 101.25KPa

Technical Index:

Item	RK2671AM
Output Voltage Range (AC/DC)	0 ~ 5 KV / 10 KV
Voltage Resolution	10V
Voltage Accuracy	±5%
Leakage current (AC)	0-2/20mA
Leakage current (DC)	0-2/10mA
Current Resolution	0~2mA:1μA 2~20mA:10μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	200VA
Capacitor of Transformer	750VA
Display Form	LED Digital Display
Power Requirements	220V±10%, 50Hz±5%
Operation Environment	0℃~40℃, ≤85%RH
Dimensions	300370200mm
Weight	14kg
