BS1363 Plugs Socket Outlets Gauges

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-BS1363
Made in China
Product description: BS1363 Plugs Socket Outlets Gauges. According to standard BS1363.
INQUIRY

BS1363 Plugs Socket Outlets Gauges

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS 1363 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

3. Specifications:

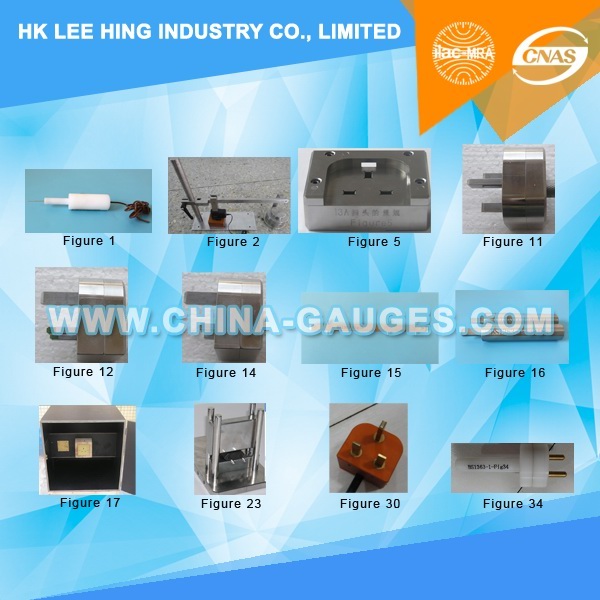

Testing Gauge BS1363 British Standards Plug Gauges
Name	Description	QTY (piece)
BS1363-2-Fig1	Test PIN	1
BS1363-2-Fig2a.2b	Elastic shell mechanical strength test device	1
BS1363-2-Fig 5	plug gauges	1
BS1363-2-Fig11	plug gauges	2
BS1363-2-Fig12	Contact test gauge	1
BS1363-2-Fig14	Non contact test	1
BS1363-2-Fig15	Insert transverse stress gauge	1
BS1363-2-Fig16	Insert pull-out force gauge	2
BS1363-2-Fig17a/b	Temperature rise test device and the	1
BS1363-2-Fig17a/b	simulationpanel	1
BS1363-2-Fig19	Stainless steel solid fuse	1
BS1363-2-Fig23	Pressure test device	1
BS1363-2-Fig29	correction clamp	1
BS1363-2-Fig30	gauges	1

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
