E17 Go-NoGo gauge of Finished Lamp Caps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-E17GN
Made in China
Product description: E17 Lamp Cap Gauge According to IEC60061.
INQUIRY

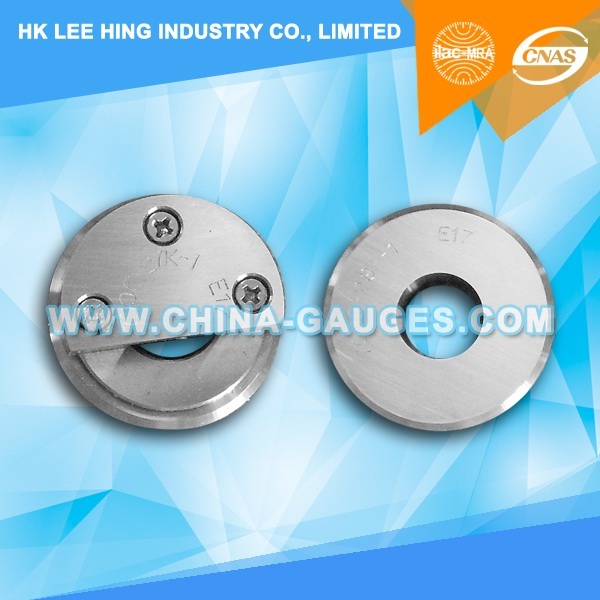

E17 Go Not Go Gauge of Finished Lamp Caps Include:

1) IEC60061-3 7006-27K-1 E17 Go Gauge for Caps on Finished Lamps;

Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E17 caps on finished lamps.

Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall touch surface X. When the lamp is being removed from the gauge, at least two full turns shall be required to disengage the threads.

2) IEC60061-3 7006-28F-1 E17 Not Go Gauge for Caps on Finished Lamps;

Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of E17 caps on finished lamps.

Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X. Only the weight of the gauge itself shall be used in the test.
