EN 60350-2:2013 Standardised Cookware

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-NX16
Made in China

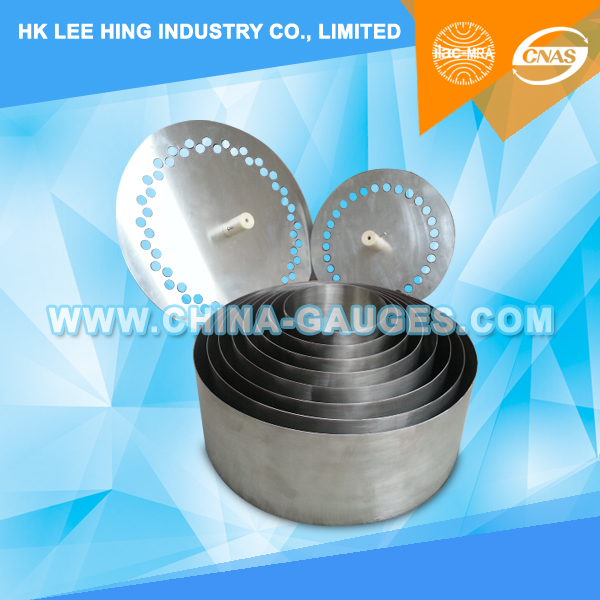

Product description: one set with 8 pcs, the diameter is: 120 mm, 150mm, 180mm, 210mm, 240mm, 270mm, 300mm, 330mm.
INQUIRY

EN 60350-2:2013 Standardised Cookware

Application:

The Standardised Cookware (Stainless Steel Pans) according to EN 60350-2:2013 requirements, mainly used to assess the energy efficiency of electromagnetic cooker test cookware.

Technical Parameters:

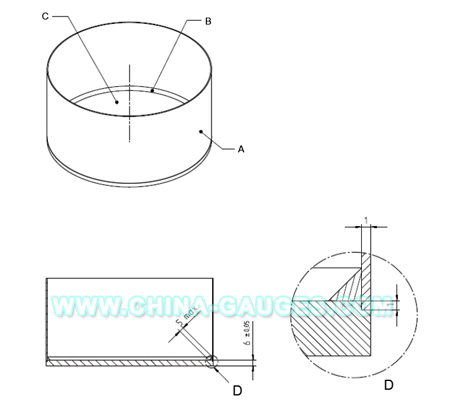

a) The Standardised Cookware bottom material is made of 1.4016 stainless steel, bottom thickness size is 6 mm ± 0.05 mm, bottom cannot be protrude outwards.

b) The Standardised Cookware walls material is made of 1.4301 stainless steel, walls thickness is 1 mm ± 0.05 mm, It does not have a handle and a protruding cylinder.

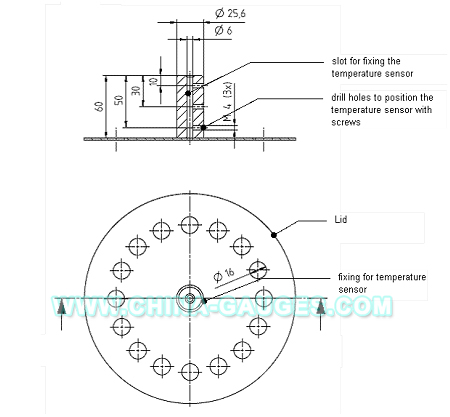

c) The Standardised Cookware lid material is made of aluminum, lid thickness is 2 mm ± 0.05 mm, diameter of each hole in the lid is 16 mm ± 0.1 mm, and holes are evenly distributed on the hole ring.

d) A fixture with a temperature sensor at the center of the lid, its material is plastic.

Specification:

Diameter of the cookware bottom (outside) mm	Diameter of the lid mm	Lid hole circle diameter mm	Number of holes on the circle	Total cookware height (outside) mm	Flatness of cookware bottom mm	Water load g	Cooking zone size category mm	Standardised cookware categories
120 ± 0,5	130 ± 1	80 ± 1	7	125 ± 0,5	≥ 0 < 0,075	650	≥ 100 < 130	A
150 ± 0,5	165 ± 1	110 ± 1	11	125 ± 0,5	≥ 0 < 0,075	1030	≥ 130 < 160	A
180 ± 0,5	200 ± 1	140 ± 1	16	125 ± 0,5	≥ 0 < 0,075	1500	≥ 160 < 190	B
210 ± 0,5	230 ± 1	170 ± 1	22	125 ± 0,5	≥ 0 < 0,1	2050	≥ 190 < 220	C
240 ± 0,5	265 ± 1	200 ± 1	29	125 ± 0,5	≥ 0 < 0,1	2700	≥ 220 < 250	C
270 ± 0,5	300 ± 1	230/210 a ± 1	18/18 a	125 ± 0,5	≥ 0 < 0,15	3420	≥ 250 < 280	D
300 ± 0,5	330 ± 1	260/210 a ± 1	23/22 a	125 ± 0,5	≥ 0 < 0,15	4240	≥ 280 < 310
330 ± 0,5	365 ± 1	290/270 a ± 1	27/27 a	125 ± 0,5	≥ 0 < 0,15	5140	≥ 310 ≤ 330
a Number of holes are arranged on two hole circles.
