IEC 60335-2-9 Figure 102 Test Load for Testing Rotating Spits

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-FZ02
Made in China

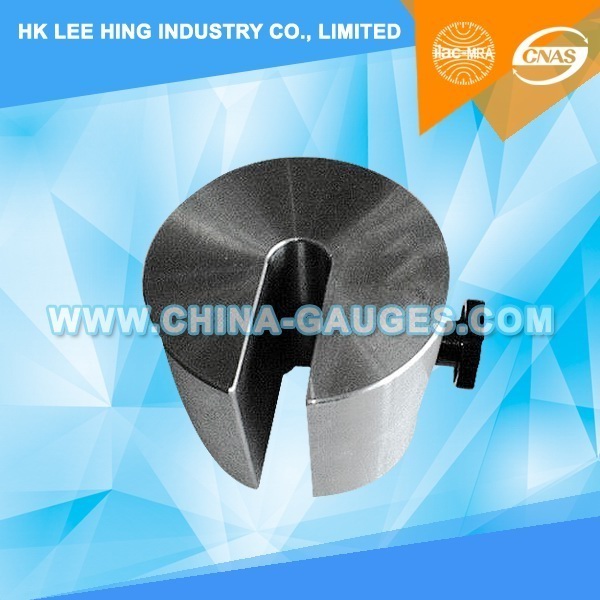

Product description: The testing rotating spits load complies with IEC60335-2-9 Figure 102, the equivalent mass is about 4.5kg, made of stainless steel.
INQUIRY

IEC 60335-2-9 Figure 102 Test Load for Testing Rotating Spits

The testing rotating spits load complies with IEC60335-2-9 Figure 102, the equivalent mass is about 4.5kg, made of stainless steel.

Size: Diameter 100 * 85 mm

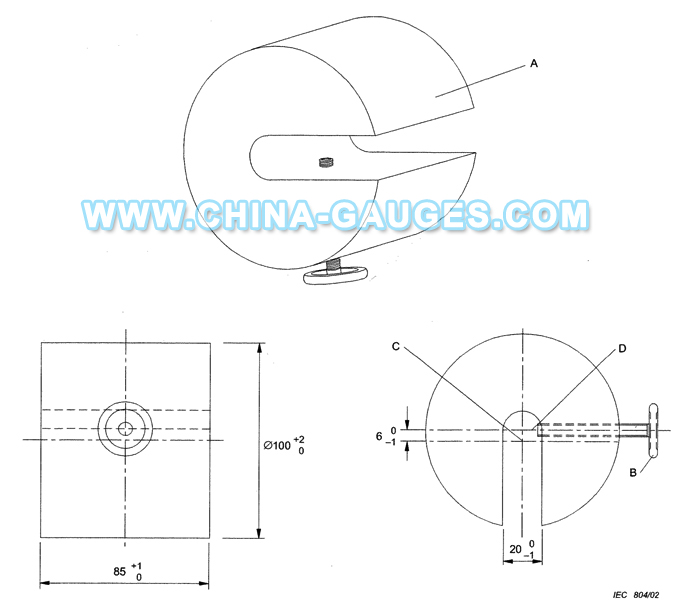

Key
A Load, mass approximately 4,5 kg
B Fixing screw
C Axis of load
D Axis of fixing screw

NOTE: The load is positioned on the rotary spit so that the fixing screw contacts the diameter of the spit.
