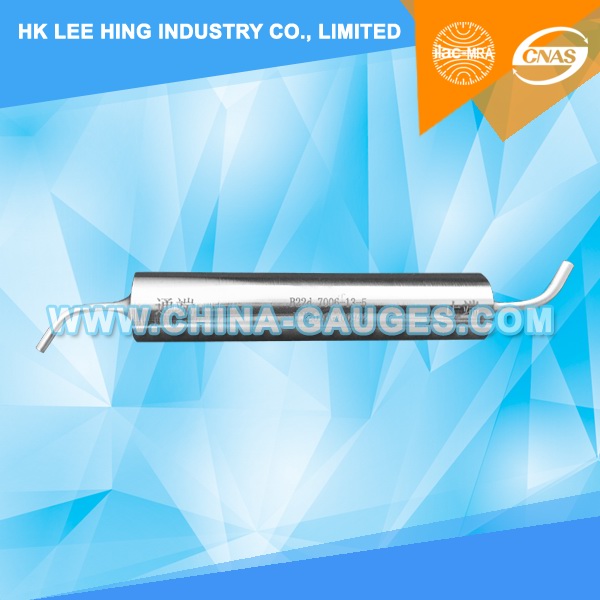

7006-13-5 B22d Gauge for The Slots in Lampholders

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: 7006-13-5
Made in China
Product description: 7006-13-5 Gauge for The Slots in Lampholders B22d. According to standard IEC 60061-3.
INQUIRY

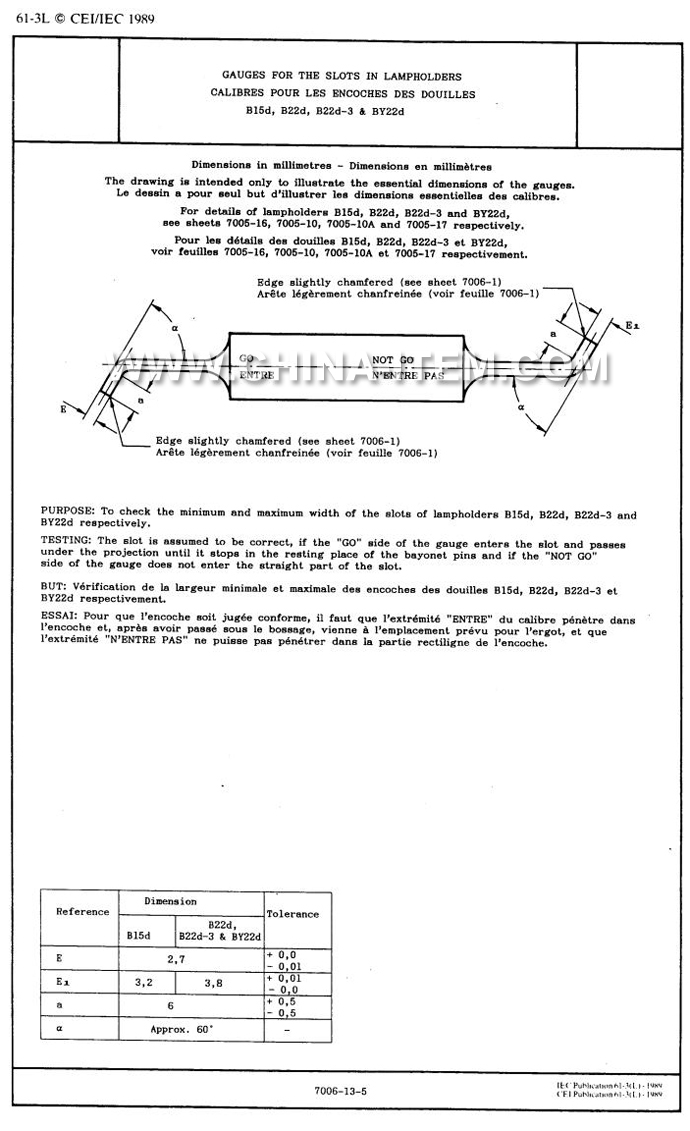

IEC60061-3: 7006-13-5 Gauge for The Slots in Lampholders B22d

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of lampholders B15d, B22d, B22d-3 and BY22d, see sheets 7005-16, 7005-10, 7005-10A and 7005-17 respectively.

PUEPOSE: To check the minimum and maximum width of the slots of lampholdrs B15d, B22d, B22d-3 and BY22d respectively.

TESTING: The slot is assumed to be correct, if the "GO" side of the gauge enters the slot and passes under the projection until it stops in the resting place of the byonet pins and if the "NOT GO" side of the gauges does no tenter the strainht part of the slot.
