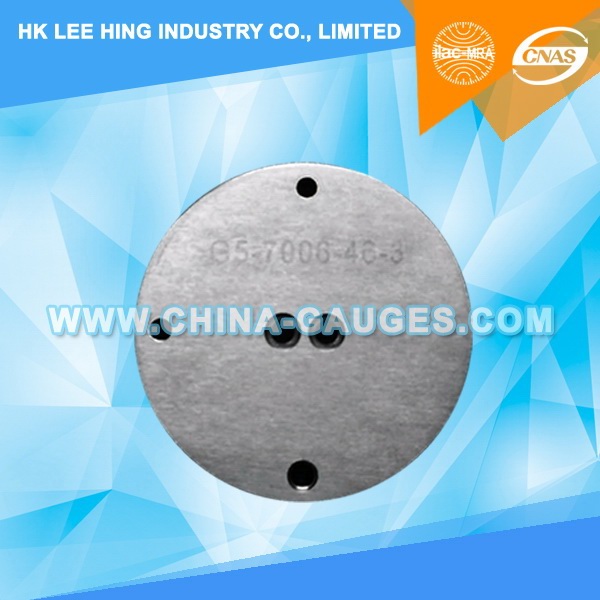

7006-46-3 G5 Go and Not Go Gauge for Unmounted Bi-pin Cap (Not for Use on Finished Lamps)

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: 7006-46-3
Made in China
Product description: 7006-46-3 G5 Go and Not Go Gauge for Unmounted Bi-pin Cap (Not for Use on Finished Lamps). According to standard IEC 60061-3
INQUIRY

IEC60061-3: 7006-46-3 G5 Go and Not Go Gauge for Unmounted Bi-pin Cap (Not for Use on Finished Lamps)

IEC60061-3 G5 Go Not Go Gauge for Lamp (7006-46-3)

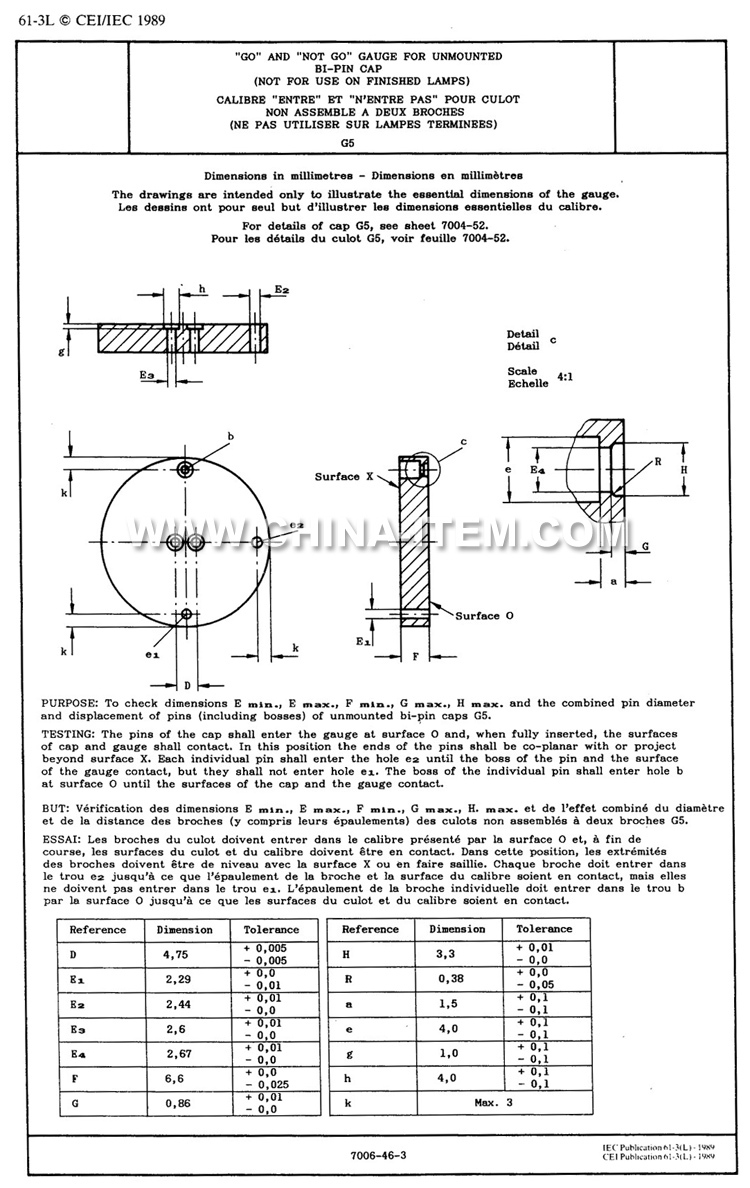

Purpose:
To check dimensions E min., E max., F min., G max., Hmax., and the combined pin diameter and displacement of pins (including bosses) of unmounted bi-pin caps G5.

Testing:
The pins of the caps shall enter the gauge at surface O and when fully inserted, the surfaces of cap and gauge shall contact.

In this position the end of the pins shall be co-planar with or project beyond surface X. Each individual pin shall enter the hole e2 until the boss of the pin and the surface of the gauge contact, but they shall not enter hole e1. The boss of the individual pin shall enter hole b at surface O until the surfaces of the cap and the gauge contact.

G5 Go and Not Go Gauge for Unmounted Bi-pin Cap Not for Use on Finished Lamps
