7006-57-3 R17d Go and Not Go Gauge for Recessed Double Contact Cap on Finished Lamps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: 7006-57-3
Made in China
Product description: BS / NEN / IEC / DIN / EN 60061-3 7006-57-3 R17d Go and Not Go Gauge for Recessed Double Contact Cap on Finished Lamps.
INQUIRY

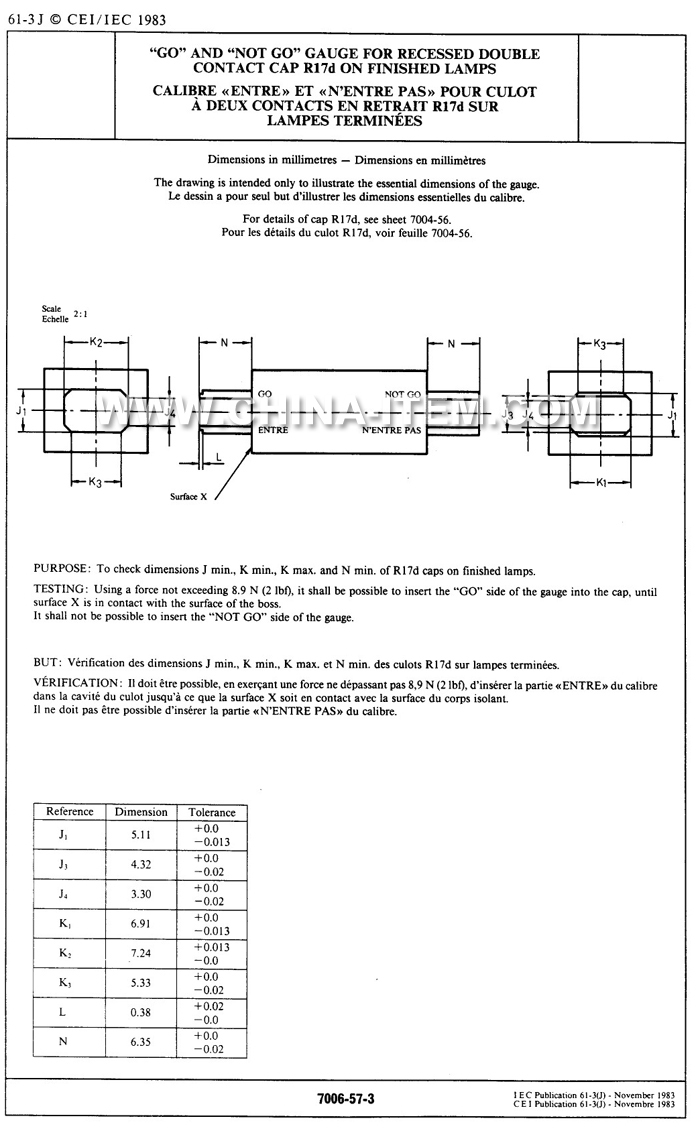

IEC 60061-3 7006-57-3 R17d Go and Not Go Gauge for Recessed Double Contact Cap on Finished Lamps

For details of cap R17d, see sheet 7004-56.

PURPOSE: To check dimensions J min., K min., K max. and N min. of R17d caps on finished lamps.

TESTING: Using a force not exceeding 8.9N (2 lbf), it shall be possible to insert the "GO" side of the gauge into the cap, until surface X is in contact with the surface of the boss.

It shall not be possible to insert the "NOT GO" side of the gauge.

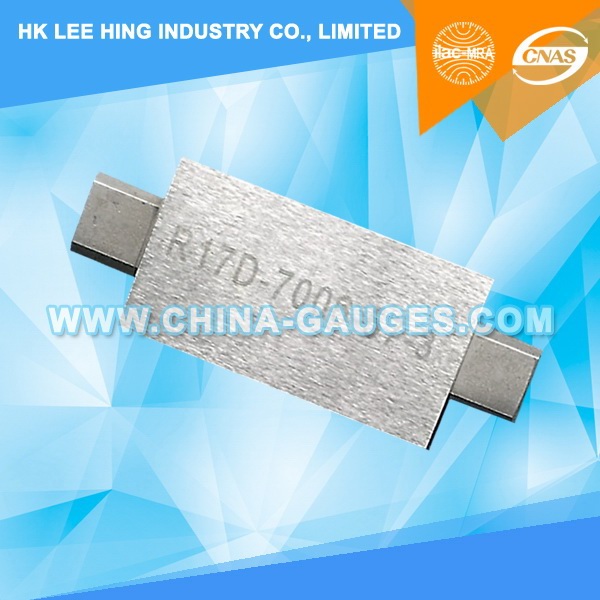

R17d Go and Not Go Gauge for Recessed Double Contact Cap on Finished Lamps
