7006-29A-2 E26d Gauge for Caps on Finished Lamps for Testing Protection Against Accidental Contact

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS Calibration Certificate
Item No.: 7006-29A-2
Made in China
Product description: IEC 60061-3 7006-29A-2 E26d Gauge for Caps on Finished Lamps for Testing Protection Against Accidental Contact.
INQUIRY

IEC 60061-3 7006-29A-2 E26d Gauge for Caps on Finished Lamps for Testing Protection Against Accidental Contact

Dimensions in millimetres
The drawing is intended only to illustrate the dimensions essential for interchangeability.
For details of cap E26d, see sheet 7004-29

PURPOSE:
To check protection against accidental contact of caps E26d on finished lamps.

TESTING: When the lamp has been pushed into the gauge as far as it will go with the side solder of the cap located in the recess provided, surface W of the plunger shall not project beyond surface V.

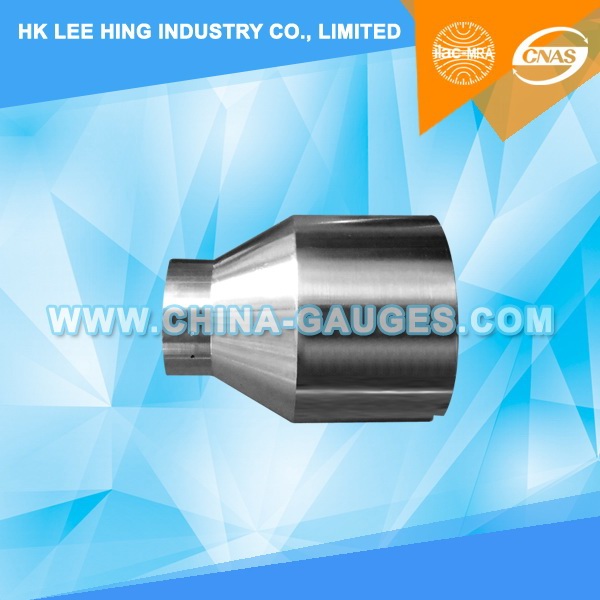

E26d Gauge of Lamp Caps
