Vessel for Testing Hotplates of IEC 60335-2-9:2016 Figure 103

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-LG05
Made in China

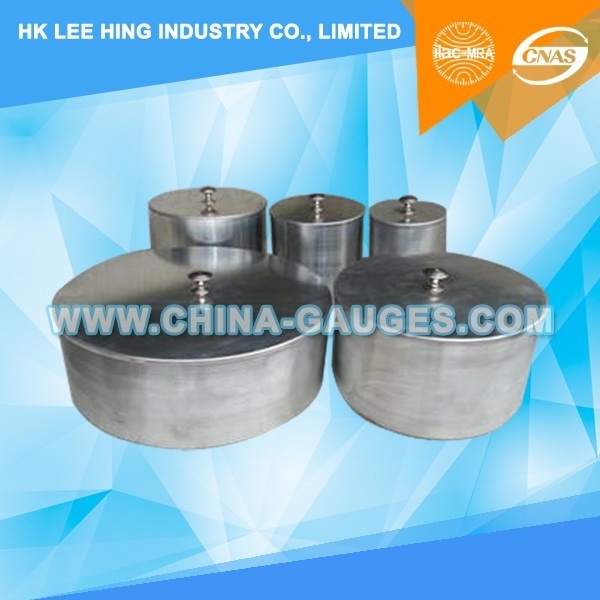

Product description: one set with 5 pcs, the diameter is: 110 mm, 145mm, 180mm, 220mm, 300mm, have a flat bottom and are covered with a lid.
INQUIRY

Vessel for Testing Hotplates of IEC 60335-2-9:2016 Figure 103

1. The vessels are made of unpolished commercial quality aluminium, have a flat bottom and are covered with a lid.

2. The vessels are met the requirements of IEC 60335-2-9 Figure 103, EN 30-1-1 2008 (E) Annex C2 etc standards.

3. Normal operation: Hotplates, other than induction hotplates, are operated with vessels containing water. Controls are adjusted to their highest setting untill the water boils and then adjusted so that the water simmers. water is added to maintain the level during boiling.

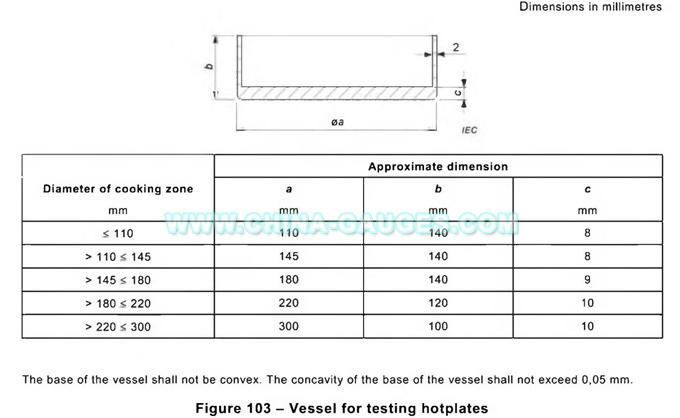

4. Parameters:

Diameter of cooking zone mm	Approximate dimension
Diameter of cooking zone mm	a mm	b mm	c mm
≤110	110	140	8
> 110 ≤ 145	145	140	8
> 145 ≤ 180	180	140	9
> 180 ≤ 220	220	120	10
> 220 ≤ 300	300	100	10

NOTE: The maximum concavity of the vessel is to be not more than 0,05 mm. The base of the vessel is not to be convex.
