Water Jets Nozzle Test Device of IPX5 and IPX6

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-IPX56H
Made in China
Product description: The IPX5-6 Jet Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are
INQUIRY

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the

wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

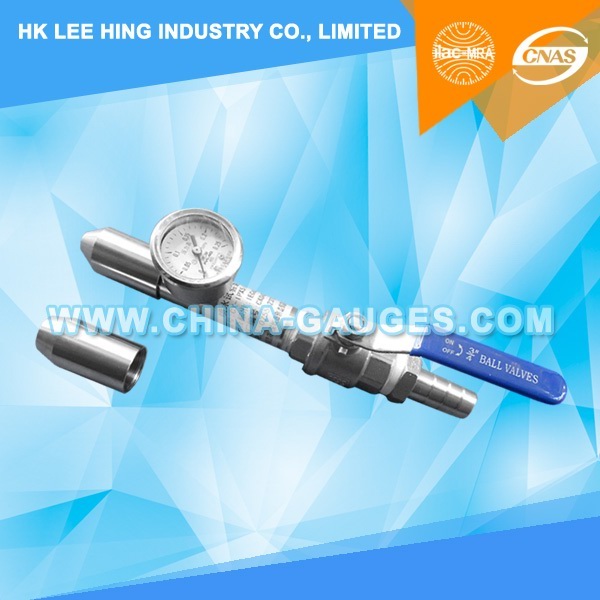

The device consists of a jet handle that is equipped with a pressure gauge flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Item	IPX5	IPX6
The nozzle diameter	6.3 mm	12.5 mm
Water flow	12.5±0.625L/min.	100±0.625L/min.
Testing time	Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel

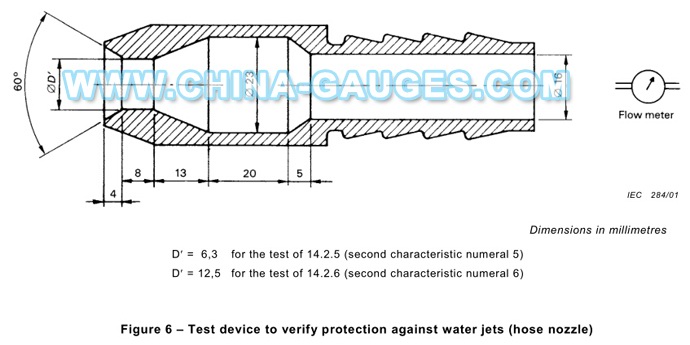

Figure 6 - Test device to verify protection against water jests (hose nozzle)
