Application

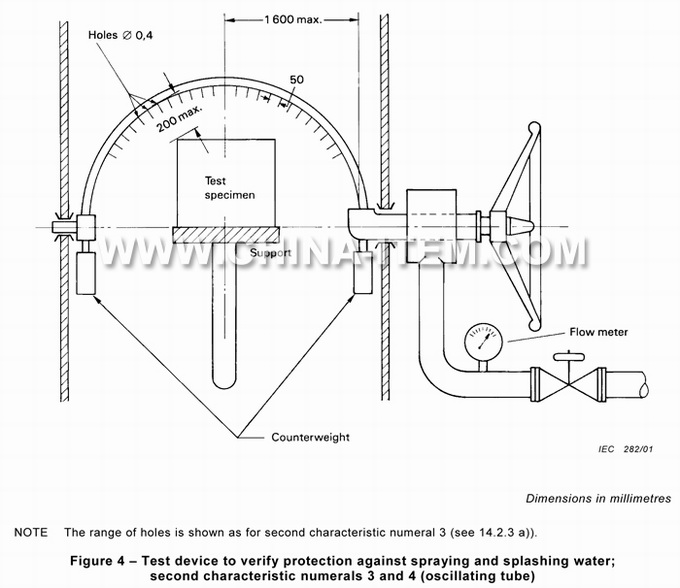

The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

IPX3 IPX4 Oscillating Tube Tester is composed of three parts: The swing pipe, swivel table and swing pipe column (by the water tank, water pump, float valve, flow meter, pressure gauges, pressure regulating valves, water filter, motor, electric control system, etc.).

Technology Parameter

Power Supply	Single phase AC220V, 50Hz
Swing Pipe diameter	15mm (304 stainless steel)
Swing Pipe radius	R800mm;
Orifice diameter	0.4mm
Orifice angle	IPX3: 120°; IP4X: 180°
Pendulum Angle	IPX3: 120°(±60°); IPX4: 360°(±180°)
Swing Pipe Speed	IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°)
Water discharge	1-10L/min, adjustable
Test time	0-999mins, can preset
Swivel table diameter	600mm
Swivel table speed	1-5 rpm/min
Adjustable telescopic pipe height	1000-1700mm

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
