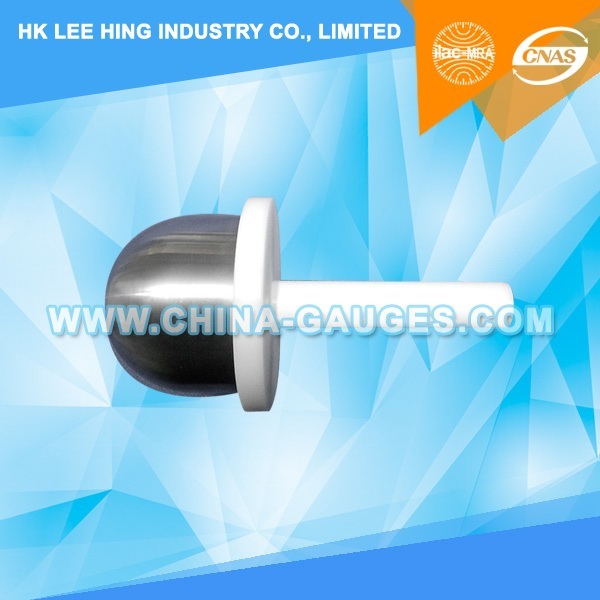

75mm Test Probe with Hemispherical End of IEC60335

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-7510
Made in China
Product description: 75mm test probe meets the standard requirements of IEC 60335, used for judging whether the surface that the probe is unreachable has the necessity to do the temperature rise test.
INQUIRY

Standard: IEC60335-2-30, IEC60335-2-24.

Diameter: 75mm, Confirm to the IEC60335-2-24 clause21.102. Sphere is hardened steel.

The test rod is 75 mm in diameter, of unrestricted length and with a hemispherical end.

Compliance is checked by applying a 75 mm ± 0,5 mm diameter sphere without appreciable force in an attempt to touch the lamp with the lamp cover in place.

Technical parameters:

Probe diameter: 75mm

Probe length: 50mm

Baffle plate diameter: 100mm

Baffle plate thickness: 10mm
