BA9 Go Gauges for Caps on Finished Lamps 7006-11-8

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-11-8
Made in China
Product description: BA9 Go Gauges for Caps on Finished Lamps 7006-11-8 According to standard IEC 60061-3
INQUIRY

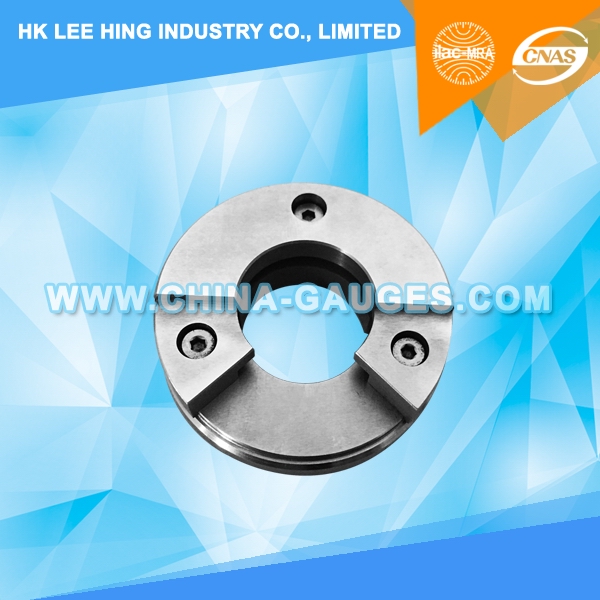

BA9 Go Gauges for Caps on Finished Lamps 7006-11-8

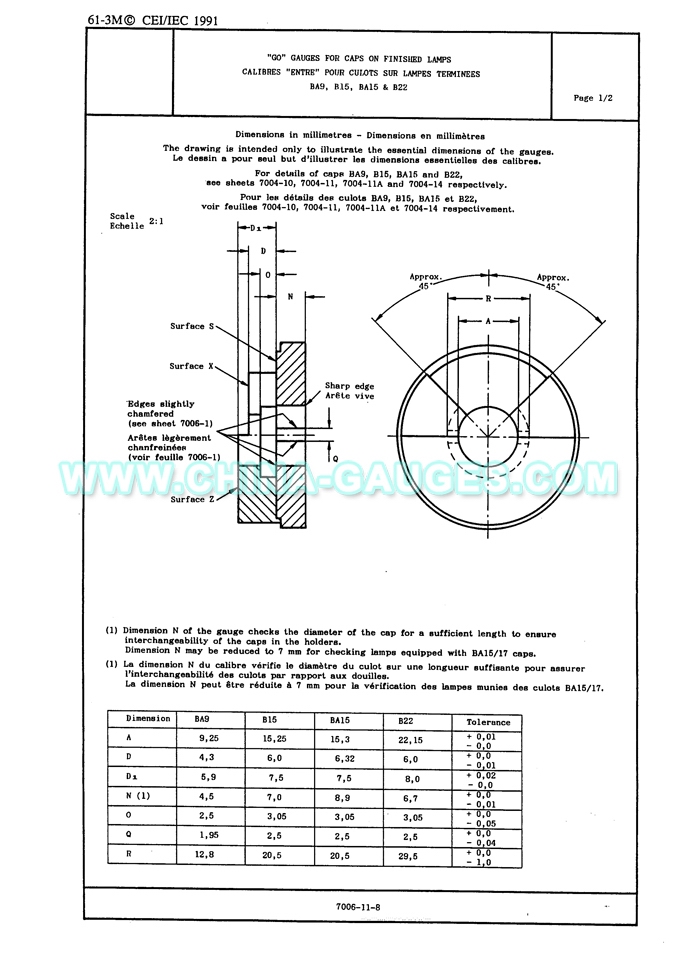

(1) Dimension N of the gauge checks the diameter of the cap for a sufficient length to ensure interchangeability of the caps in the holders.

PURPOSE: To check dimensions A max., N min., D1 min., D1 max. and the diametrical position of the pins of caps BA9 on finished lamps.

TESTING: The cap shall enter the gage until the pins have passed through the slots Q. The cap is then turned through a small angle and is pressed so that he pins are in close contact with surface S.

In this position ,the contact-making surface surface shall not be below sureface X nor shall it project beyond surface Z.
