G10q, GX10q, GY10q, GZ10q Go Gauge for Caps 7006-79-2

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-79-2
Made in China
Product description: G10q, GX10q, GY10q, GZ10q Go Gauge for Caps 7006-79-2 According to standard IEC 60061-3
INQUIRY

G10q, GX10q, GY10q, GZ10q Go Gauge for Caps 7006-79-2

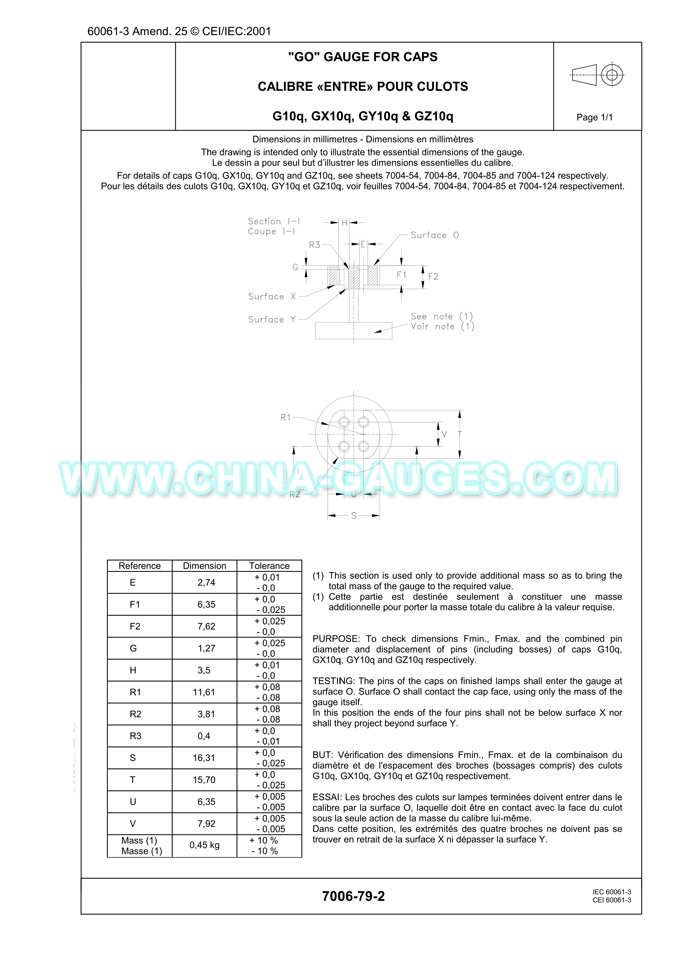

(1) This section is used only to provide additional mass so as to bring the total mass of the gauge to the required value.

PURPOSE: To check dimensions Fmin., Fmax. and the combined pin diameter and displacement of pins (including bosses) of caps G10q, GX10q, GY10q and GZ10q respectively.

TESTING: The pins of the caps on finished lamps shall enter the gauge at surface O. Surface O shall contact the cap face, using only the mass of the gauge itself.

In this position the ends of the four pins shall not be below surface X nor shall they project beyond surface Y.
