E26d Gauge for Testing Contact-Making in Metal-Shell Paper-Lined Lampholders 7006-29H-3

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-29H-3
Made in China
Product description: E26d Gauge for Testing Contact-Making in Metal-Shell Paper-Lined Lampholders 7006-29H-3. According to standard IEC 60061-3.
INQUIRY

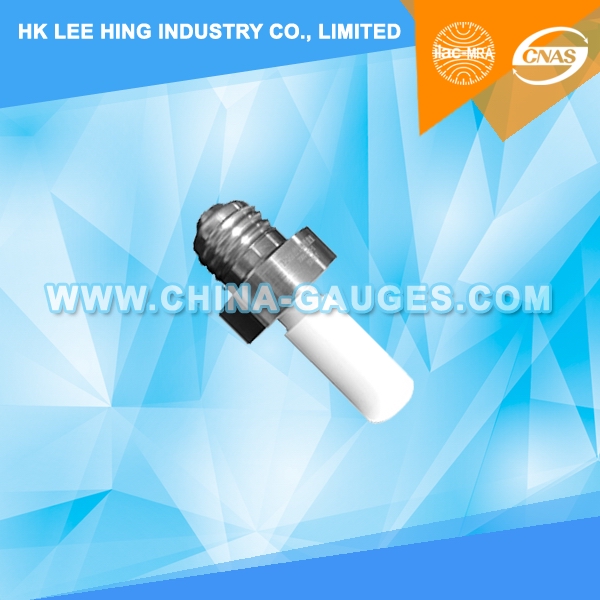

E26d Gauge for Testing Contact-Making in Metal-Shell Paper-Lined Lampholders 7006-29H-3

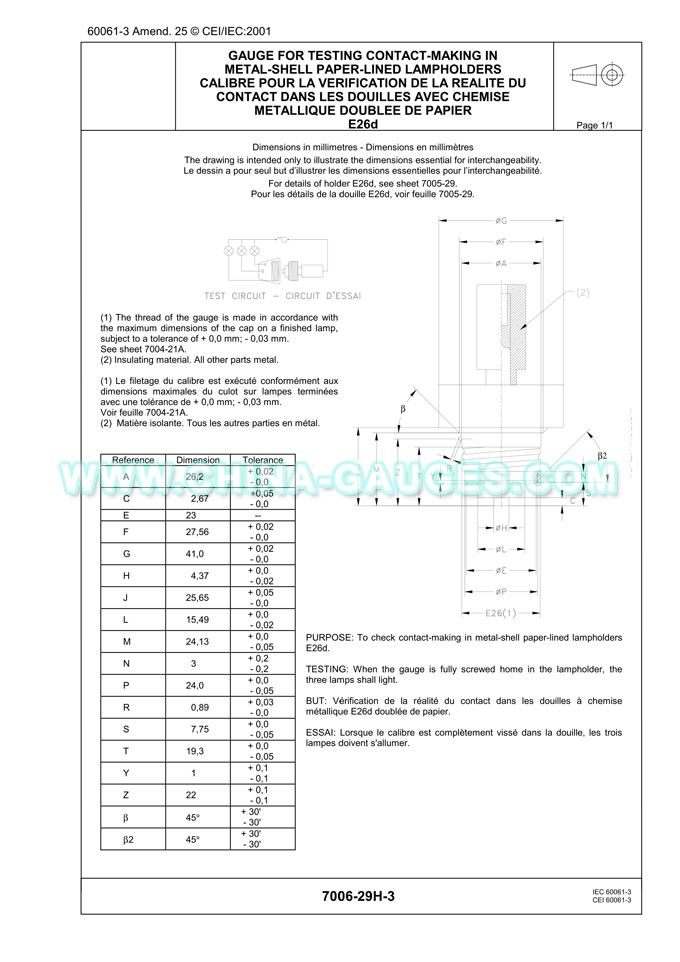

(1) The thread of the gauge is made in accordance with the maximum dimensions of the cap on a finished lamp, subject to a tolerance of + 0,0 mm; - 0,03 mm.
See sheet 7004-21A.
(2) Insulating material. All other parts metal.

PURPOSE: To check contact-making in metal-shell paper-lined lampholders E26d.

TESTING: When the gauge is fully screwed home in the lampholder, the three lamps shall light.
