GU10 Gauge for Checking The Maximum Insertion and Withdrawal Torques in Lampholders 7006-121A-2

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: 7006-121A-2
Made in China

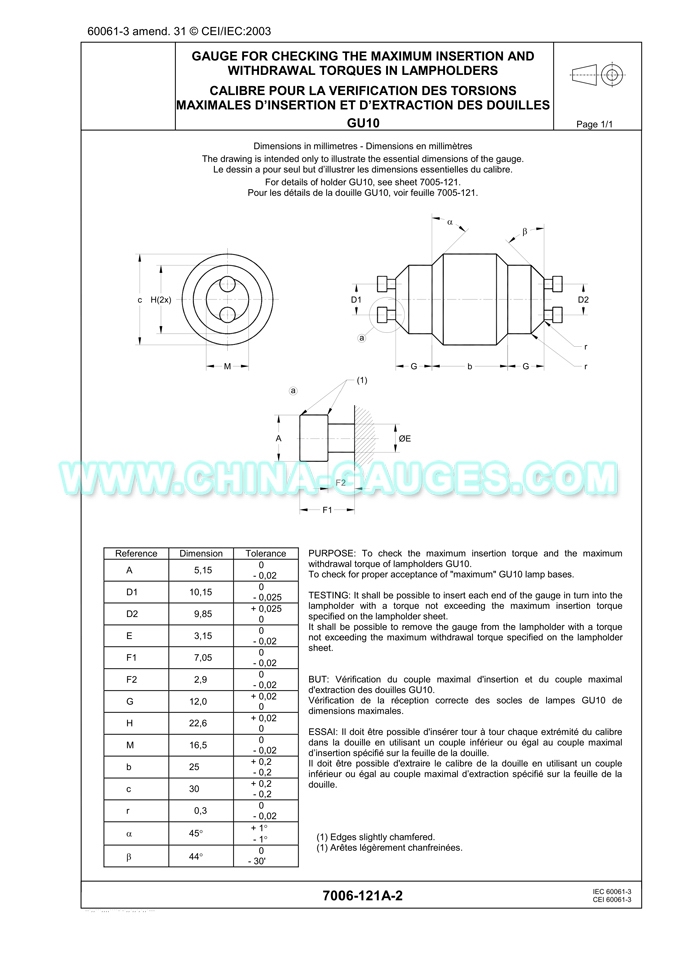

Product description: GU10 Gauge for Checking The Maximum Insertion and Withdrawal Torques in Lampholders 7006-121A-2 According to standard IEC 60061-3.
INQUIRY

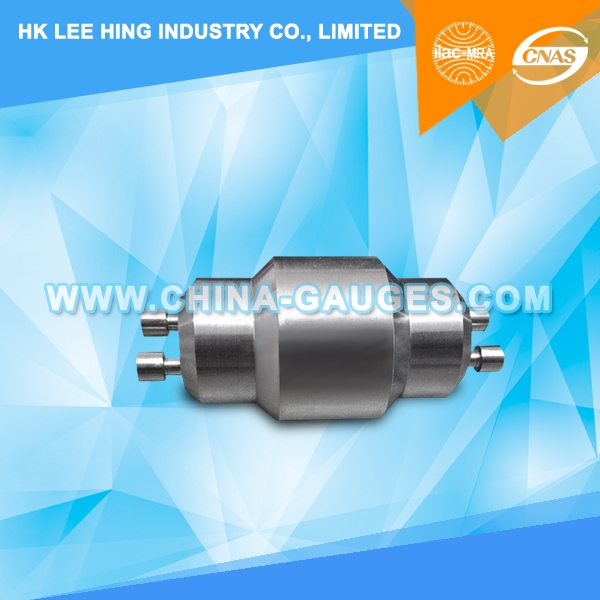

GU10 Gauge for Checking The Maximum Insertion and Withdrawal Torques in Lampholders 7006-121A-2

PURPOSE: To check the maximum insertion torque and the maximum withdrawal torque of lampholders GU10.
To check for proper acceptance of "maximum" GU10 lamp bases.

TESTING: It shall be possible to insert each end of the gauge in turn into the lampholder with a torque not exceeding the maximum insertion torque specified on the lampholder sheet.

It shall be possible to remove the gauge from the lampholder with a torque not exceeding the maximum withdrawal torque specified on the lampholder sheet.
