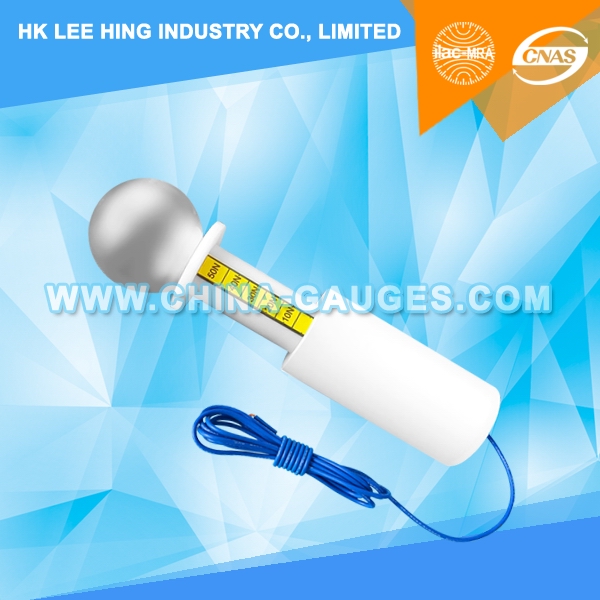

IEC Test Sphere Φ50 mm with Dynamometer 50N

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-IP10T
Made in China
Product description: IP1X Test Probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.
INQUIRY

IEC Test Sphere Φ50 mm with Dynamometer 50N

Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001 and UL;
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1. Ball Diameter: 50 mm

2. Baffle Plate Diameter: 45 mm

3. Baffle Plate Thickness: 4 mm

4. Handle Diameter: 10 mm

5. Handle Length: 100 mm

6. According to IEC 61032 Figure 1 (the Test probe A), table 6 IEC 60529 the first characteristics (1)

7. Thrust: 10N/20N/30N/40N/50N
