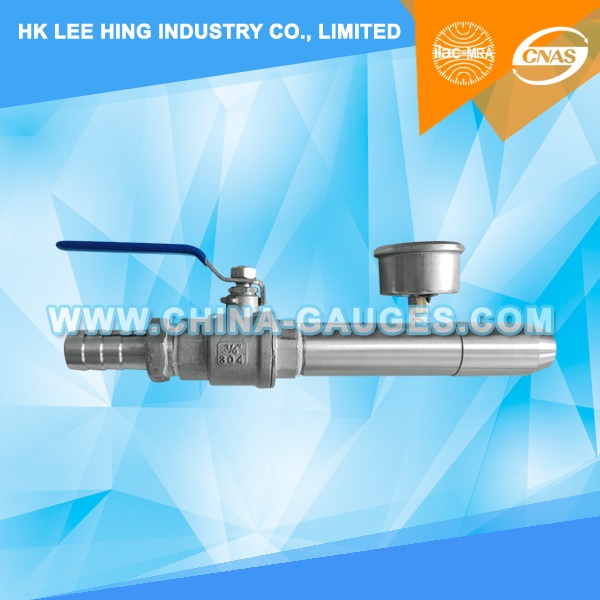

IPX6 Jet Nozzle of Diameter 12,5 mm

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-IPX6H
Made in China
Product description: IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow of 100L/min.
INQUIRY

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX6 according to the IEC 60529.

Item	IPX6
Water supply	Water flow rate >100L/min±5% clean water witho ut inclusion.
The nozzle diameter	12.5 mm
Water flow	100 L/min
Testing time	Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 0.25 MPa
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel

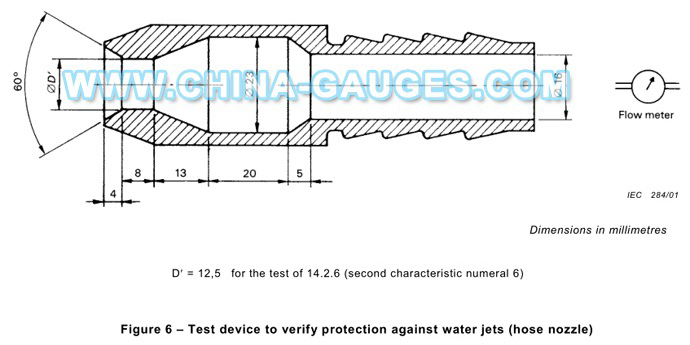

Figure 6 - Test device to verify protection against water jests (hose nozzle)
