S2140A UL Test Probe of UL507

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-S2140A
Made in China

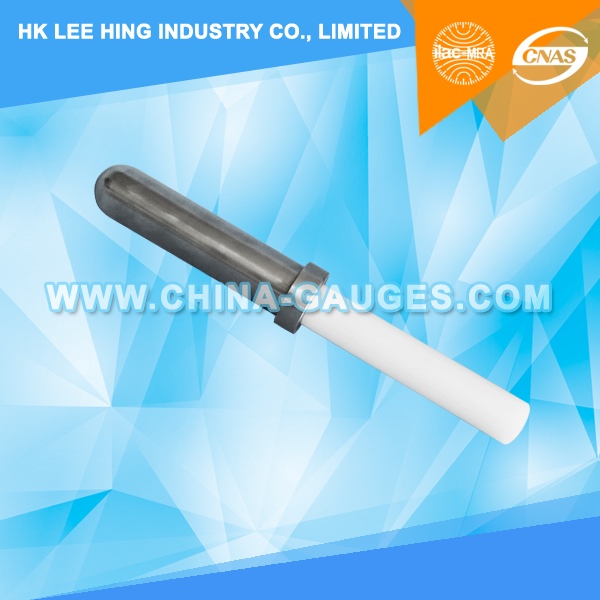

Product description: S2140A UL Test Straight Finger is necessary appliance for household and similar electrical appliances of against electric shock protection tester.
INQUIRY

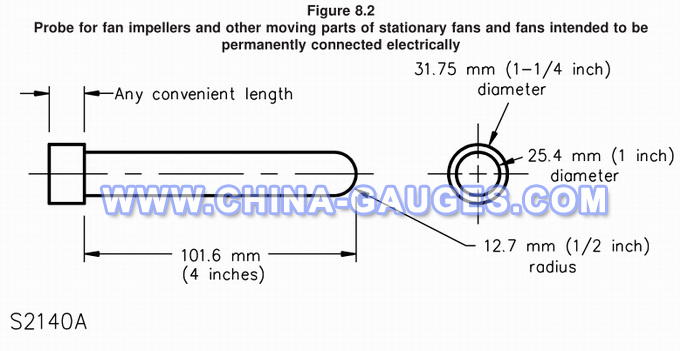

UL 507 Figure 8.2 S2140ATest Probe for Moving Pars of Stationary Fans

Probe for fan impellers and other moving parts of stationary fans and fans intended to be permanently connected electrically.

Technical parameters:

1, Straight Finger Diameter:25.4 mm(1 inch)
2, Straight Finger Total Length:101.6 mm(4 inch)
3, Head Radius: R12.7 mm(1/42 inch)
4, Tail Diameter:31.75 mm(1-1/4 inch)
5, According to: UL507 (S2140A)Fig.8.2, UL1278, UL1026.
