UL 1278 Figure 8.4 Articulate Probe SA1788A

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Item No.: LX-PA120
Made in China
Product description: UL 1278 Figure 8.4 Articulate Probe SA1788A
INQUIRY

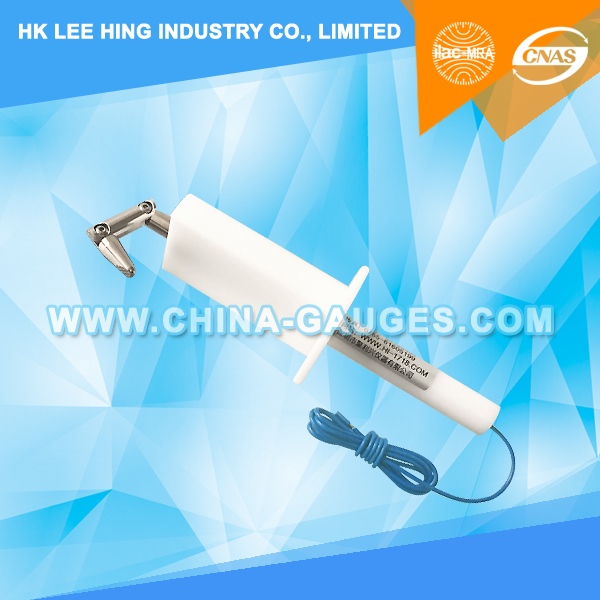

The Articulate Probe is a precision test probe made according to UL 1278 Figure 8.4. It is also used by the standards of CSA, IRAM, IEC and in most of the rules involved in the verification of accessibility to live parts.

Technical Parameters:

1. Knurled Finger Diameter: 12 mm

2. Knurled Finger Length: 80 mm

3. Baffle Plate Diameter: 50 mm

4. Baffle Plate Length: 100 mm

5. Baffle thickness: 20 mm

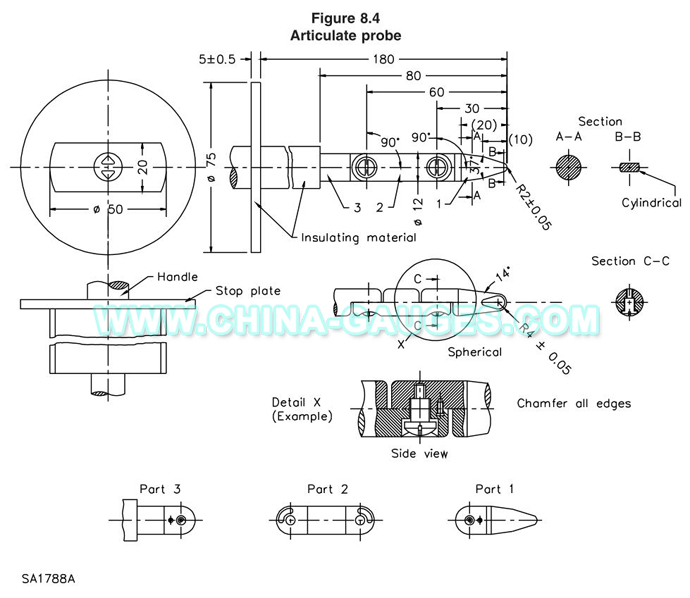

The probe illustrated in Figure shall be applied to any depth that the opening will permit; and shall be rotated or angled before, during, and after insertion through the opening to any position that is necessary to examine the product. The probe shall be applied in any possible configuration; and, if necessary, the configuration shall be changed after insertion through the opening. The probe is to be used as a measuring instrument to judge the accessibility provided by an opening, and not as an instrument to judge the strength of a material; as such, it is to be applied with the minimum force necessary to accurately determine accessibility.

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
