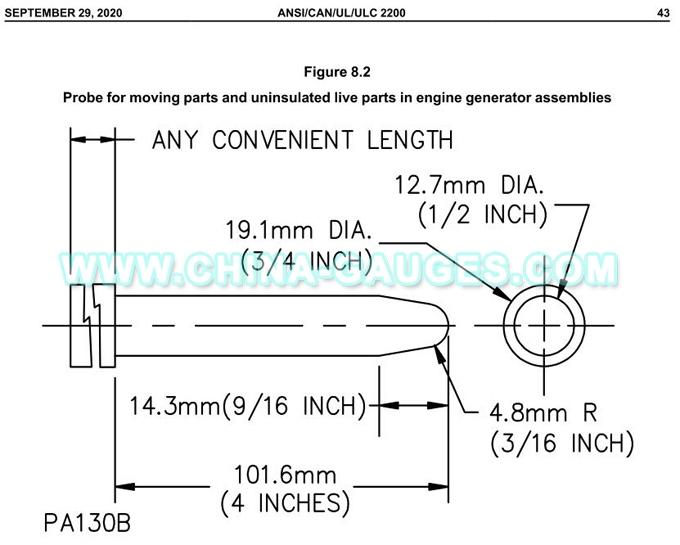

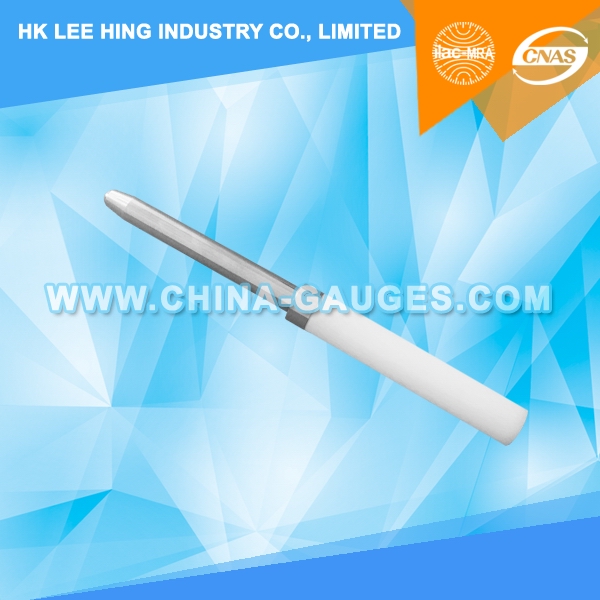

UL 2200 Figure 8.2 Probe for Moving Parts and Uninsulated Live Parts in Engine Generator Assemblies

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-PA130B
Made in China
Product description: According to standard UL 2200 Fig. 8.2.
INQUIRY

UL 2200 Figure 8.2 Probe for Moving Parts and Uninsulated Live Parts in Engine Generator Assemblies

Technical parameters:
1, Straight Finger Diameter: 12.7mm (1/2 inch)
2, Straight Finger Total Length: 101.6mm (4 inch)
3, The Head Length: 14.3mm (9/16 inch)
4, The Head Radius: R 4.8mm (3/16 inch)
5, The Tail Diameter: 19.1mm (3/4 inch)
